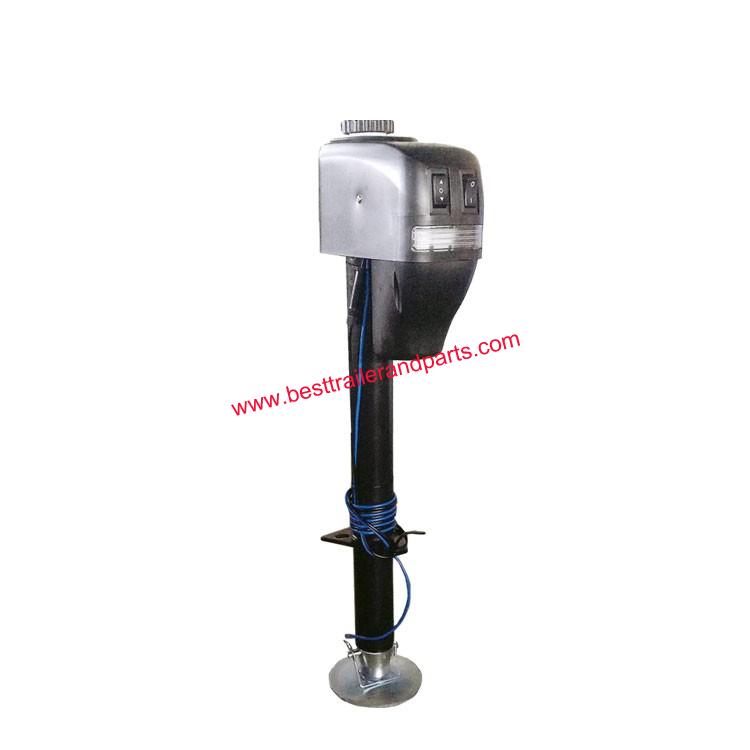

3,500lbs Electric Jack With Drop Leg – A Frame - 19.5" Lift – Round Base-Black Powder Coating
This designed 12DC Electric Jack with a frame mounting bracket, features 2 switches for operation:one is for rise up and down. the other is control light on/off . Led lights designed to use Jack in dark for long life. Jack has a retracted mounting height of 9", an extended body height of 28-1/2", its screw provide 19-1/2" travel. Drop leg offers an extra 5-5/8" of lift. Includes a manual handle together when no power.
Features:
●Electric jacks can lift or lower your trailer easily and quickly.
●The purpose of the drop leg is to provide extra height easily in operation, no need to shake the handle to gain necessary height. just us a easy Locking pin.
●Design 2 switches, one for lifting or lowering the height of the jack; The other controls led lights
●LED lights are designed to be used at night to increase brightness and point directly at the installation location.
●Manual handle is mainly designed to replace the motor when no power.
●Black powder coated outer tube & clear zinc inner tube and drop leg;
●Wires (57") to 12-volt power source
●Serrated washer included for ground connection
● A grove inside the inner tube to avoid Jack rotaing easily.
● Pallet or retailed color box for different customers.
Specs:
●Mounting Bracket Height:
oRetracted: 9"
oExtended: 28-1/2"
●Total lift: 25-1/8"
oScrew travel: 19-1/2"
oDrop leg travel: 5-5/8"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●The distance between the two holes in drop leg: 1-7/8"
●Foot Size: 5-1/2" (Round)
●Lift capacity: 3,500 lbs
●1-Year warranty
