Description

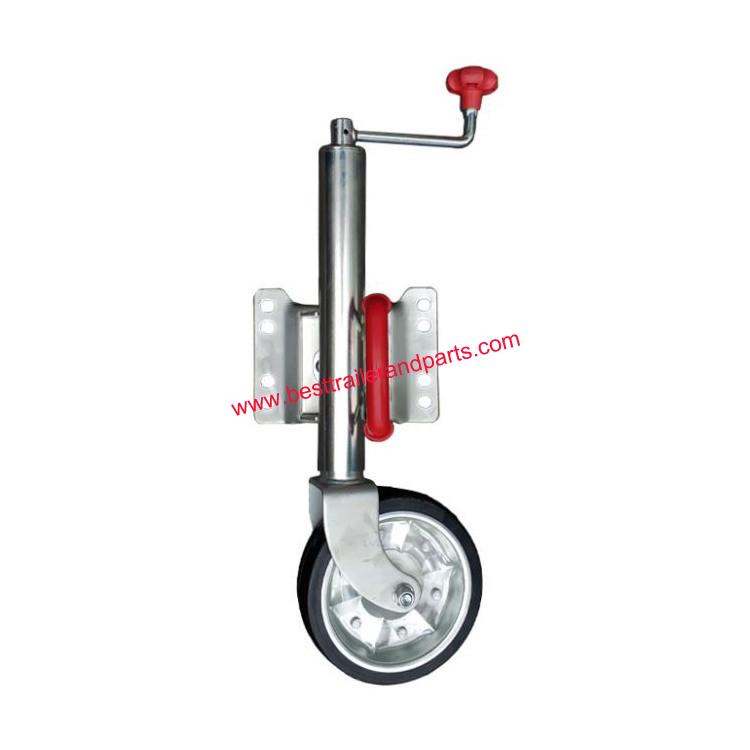

Heavy-Duty Swing-Up Jockey Wheel With Solid 8inch Steel Rubber Tyre- Galvanized-500KG
Swivel Jockey Wheel with Swivel Bracket welded in position for fixing with U-Bolts. Rated a capacity of 500kgs. 250mm lift for better use. This jockey wheel could be welded or bolted. 200mm x 55mm (8"x 2") Solid Steel Rim Rubber Wheel with Zinc plated. U bolt sold separately.
Features:
●Jockey wheel is used to lift or adjust the trailer to suit towing parts.
●Clear zinc handle has good rust resistance and suitable operation.
●The handle is fixed with jockey wheel by a Spring-pin for safety use and nice look.
●Galvanized on both outer/ inner tube.
●Swing up style and Easy Release Handle for easy operation.
●8" Steel Rim Solid Rubber Wheel.
Specs:

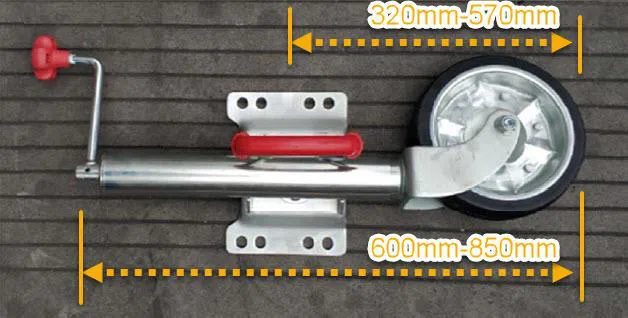

●Mounting bracket height
oRetracted 320mm
oExtended 570mm
●Body height:
o Retracted 600mm
o Extended: 850mm
●Total lift: 250mm
●Outer tube dia.: Φ51mm
●Inner tube dia.: Φ43mm
●Travel: 250mm
●Handle radius: 150mm
●Lift capacity: 500kg
●Wheel dimension: 200*55mm (8x2" rubber wheel)
