Description
● Max 8.5Amp charger for 12V battery with 3 charging steps by PWM technology as follow:
1) Constant-Current Charge---when the battery voltage is lower than set point,
it will charge the battery at the max. current which is called quick charging.
2) Constant-Voltage Charge---when the battery is almost been fully charged,
the charger will limit the current automatically.
3) Float Charge---when the battery voltage reaches the setted float voltage of 13.5V,
it will automatically switch to the float charging condition with current of 0.1A~0.3A.

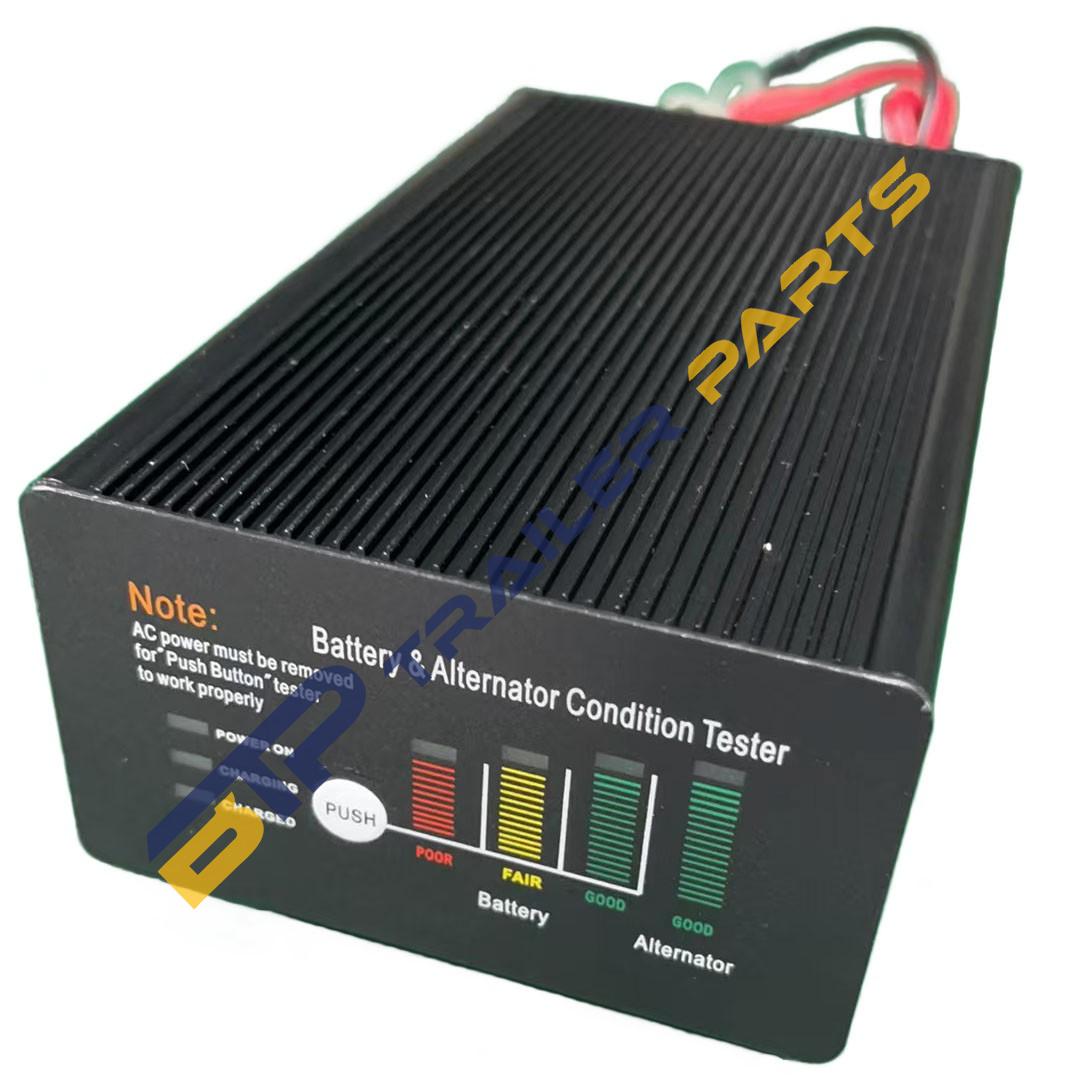

● LED indicates power and stage of charging
● Reverse polarity protection & Output short circuit protection & AC input protection
● Over charge protection & Over thermal protection
