Description

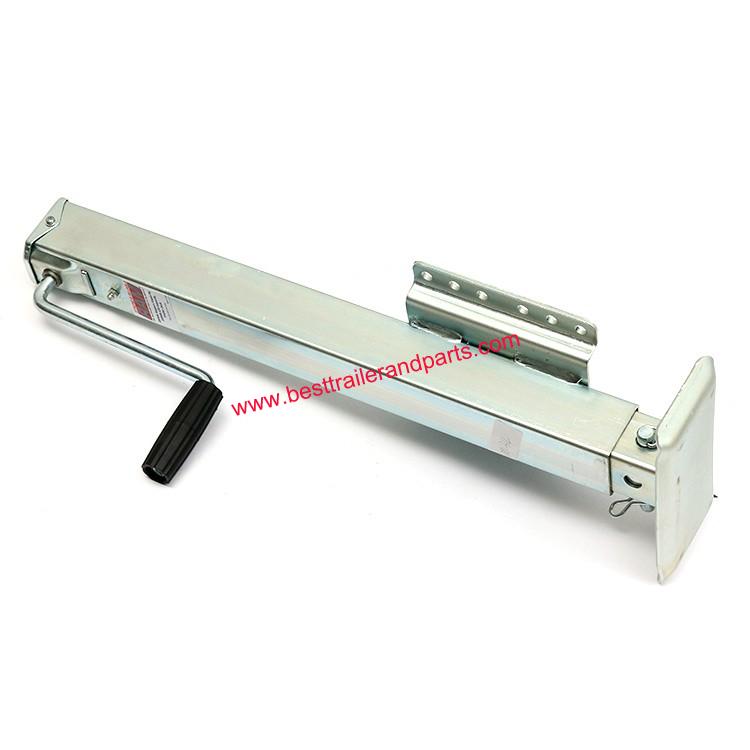

2,500LBS Square Jack - Drop Leg - Bolt On - Zinc - Sidewind - 28-1/2" Lift-Mounting Hardware Inclued
Full zinc provides good rust resistant and widely used in marine trailer. Square tube designed offers more side-load supporting lifting force. Mounting height is between 7.25” "and 22.25".The body height is between 25 "and 40".The total travel is 15” from screw, extra 13.50” from drop leg.
Features:
●Application: fits trailers with a Bolt-on swivel bracket, bot or weld-on"
●Side-wind handle has a god galvanized finish for good rust resistance
●Full zinc plated for better resists corrosion
●Gearbox located inside the outer tube to provides a nice look
●Effortless greasing with built-in grease zerk.
●Mounting bracket installation height between 7.25” and 22.25”.
●Custom finishes are available upon request.
●Mounting hardware included.
Specs:
●Bracket height (from bottom of inner tube to center of frame bracket):
o7.25" Retracted
o22.25" Extended
●Travel: 15"
●Drop leg: 13.50”
●Outer tube dia.: 2.25"
●Inner tube dia.: 2"
●Handle radius: 7.50”"
●Lift capacity: 2,500 lbs
●Static capacity: 5,000lbs
