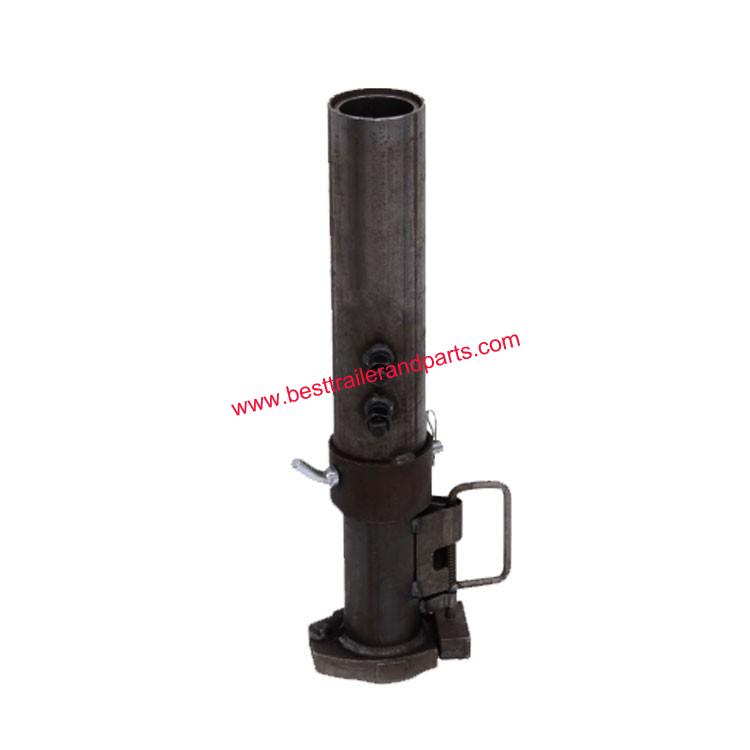

Gooseneck Coupler W/ Load Bearing Pin - 8" Adjustment - Round - 2-5/16" Ball – 30,000lbs
Gooseneck coupler has a 2-5/16" hitch ball and 8" adjustment. The casting ball clamp ensures better strong mounting. Has a retracted body height of 30 inch and extended height of 38 inch. Hidden spring latch is quick and easy to use. Heavier wall thickness of inner tube to ensure heavier lifting weight. User-friendly designing ensures quick to hook up and vertical adjustment. Oily coating for recoating as required.
Features:
●Gooseneck coupler used to hook your gooseneck trailer up to vehicle.
●Hitch ball size: 2-5/16”.
●Casting ball clamp ensures hitch ball in ball socket safety.
●Spring-loaded handle for easy opening and close.
●2 Set screws secure inner tube at required height
●Load bearing pin included.
●SAE J2638 certified.
●Weld outer tube and trailer chassis together when use.
Specs:
●Ball size: 2-5/16"
●Vertical adjustment: 8"
●Body Height:
oRetracted: 30"
oExtended: 38"
●Outer tube dia.: 4-1/2"
●Inner tube dia.: 4"
oInner tube wall thickness: 0.24"
●Hole spacing: 2-11/16" from center of hole to center of hole
oHole diameter: 7/8"
●Weight capacity: 30,000 lbs
