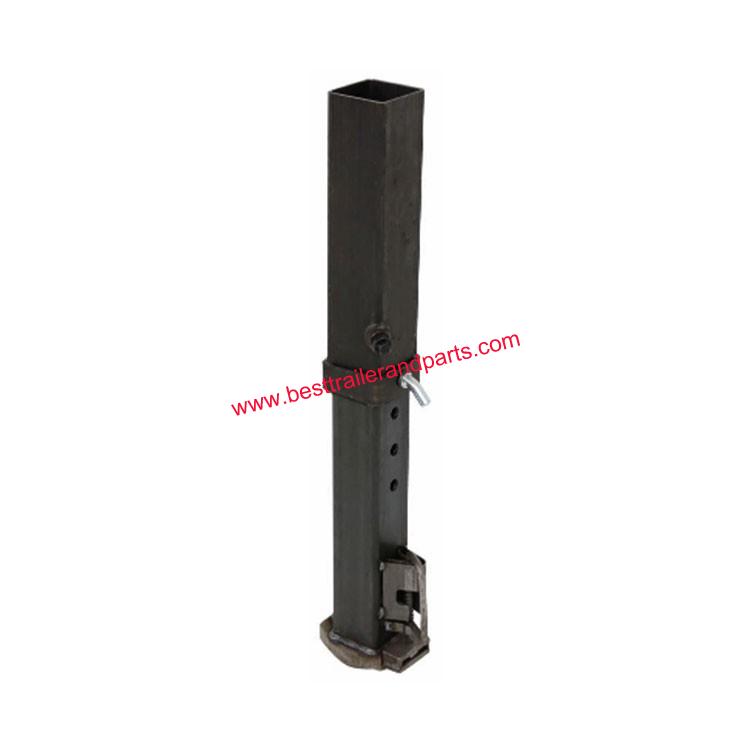

Fifth Wheel Gooseneck Coupler

Description

Gooseneck Coupler W/ Load Bearing Pin - 8" Adjustment – Square Tube - 2-5/16" Ball – 25,000lbs

Gooseneck coupler fits a 2-5/16" ball and has 8" of adjustment to connect tow vehicle. Made of a solid square tube for heavier lifting weight. The casting ball clamp secures a tight fit for the hitch ball. Belly band on bottom of outer tube adds more strength. Hidden spring handle is easy to be opening and close. Black powder coating for good corrosion resistant.

Features:

●Square Gooseneck Coupler with Adjustable Pipe

●Operates easily and quickly with one spring-load latch.

●Spring-loaded handle for easy hookup.

●1 Set screw secures inner tube at desired height.

●Belly band on bottom of outer tube adds strength and durability

●Retracted body height is 32inch and extended height is 40inch.

●Load-bearing pin included

●SAE J2638 certified

●Weld-on installation

Specs:

●Ball size: 2-5/16"

●Vertical adjustment: 8"

●Body Height:

oRetracted: 32"

oExtended: 40"

●Outer tube width: 4-1/2"

●Inner tube width: 4"

oInner tube wall thickness: 0.24"

●Hole spacing: 2-11/16" from center of hole to center of hole

oHole diameter: 7/8"

●Weight capacity: 25,000 lbs
