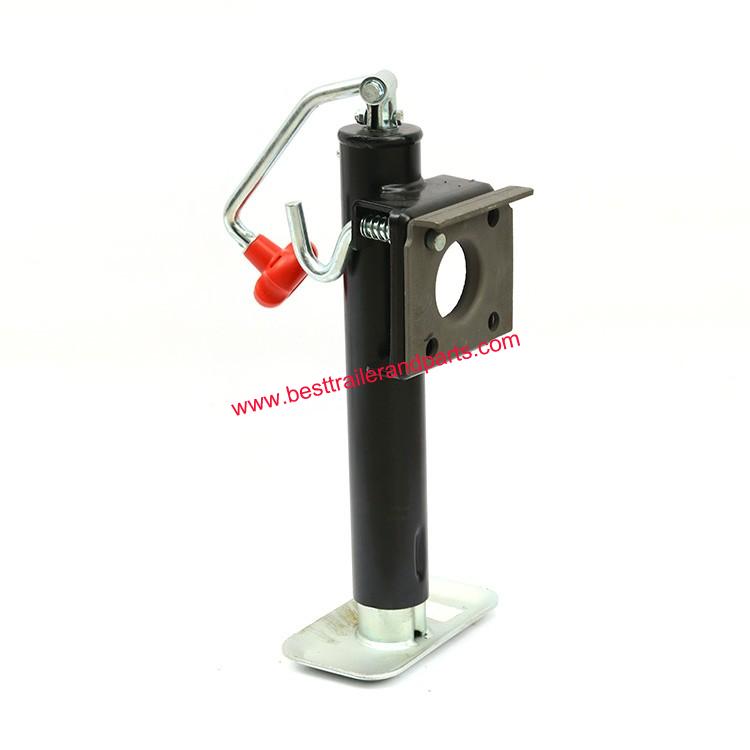

Description
This type jack is mainly used in agricultural equipment or trailers; the highlight of the design is that the mounting bracket can rotate 90 degree and held in place by welding-on. The mounting bracket has flanged and can only be connected to square pipes. Mounting bracket heights range from 11.22"to 21.22".The body height of the jack is between 15.28"and 25.28". Total 10” Travel for use.
Features:
●High quality steel material provides higher performance
●Spring-loaded locking pin is very convenient to operate, pulling up and down to complete the operation process.
●Our spring-loaded locking pin is 1/2 " diameter, which is larger than other manufacturers
●Our mounting bracket is reinforced in order to provide more strength
●Black powder coating of Outer tube, zinc of inner tube, foot and handle kits
●Foot size is reasonable, which is not easy to sink in the sand
●There are corrosion resistant nozzles on the outer tube, which can be filled with lubricating oil as required
●Weld-on mounting bracket included.

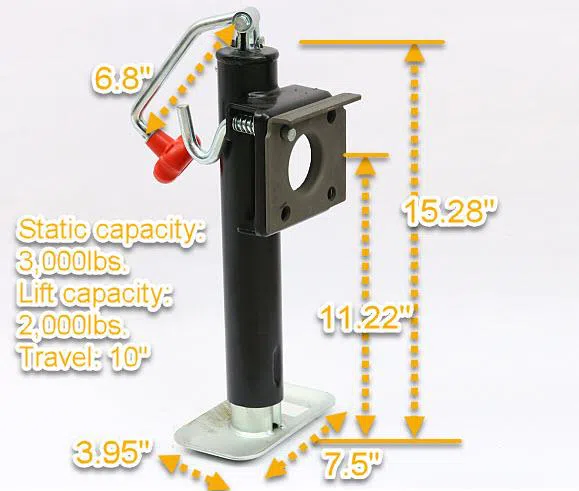

Specs:
●Mounting height (from bottom of foot to center of mounting plate):
o11.22" Retracted
o21.22" Extended
●Travel: 10"
●Outer tube dia.: 2-1/4" (Φ57mm)
●Inner tube dia.: 2" (Φ51mm)
●Footplate dimensions: 7.5" long x 3.95" wide (190*100mm)
●Mounting bracket dimensions: 5" x 4.25"
●Handle radius: 6.8"(171.5mm)
●Lift capacity: 2,000 lbs
