Description

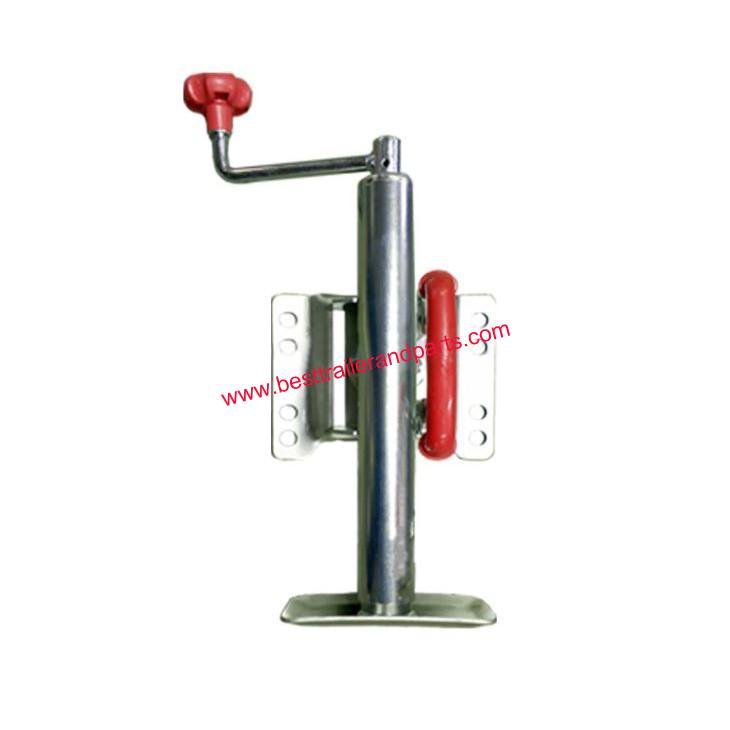

Heavy-Duty Swing-Up Jockey Wheel Stands With Plain Foot- Galvanized-750KG
Swivel jockey wheel stands provides more capacity to lift or lower trailers wit a plain foot. it Rate a capacity of 750kgs. 254mm lift for better use. This jockey wheel stands could be welded or bolted to trailer chassis with a U-bolt or directly welded. 180mm x 100mm(7"x 4") plain foot with Zinc plated to support heavy-duty trailers. big diameter of handle features a large and long life use. U bolt sold separately.
Features:
●Jockey wheel is used to lift or adjust the trailer to suit different towing height.
●Clear zinc handle with red knob has good rust resistance and suitable operation.
●The handle is fixed with jockey wheel by a 4-bolts for safety use and nice look.
●Galvanized on both outer/ inner tube.
●Swing up style and Easy Release Handle for easy operation.
●Plain large foot features a heavier use.
Specs:

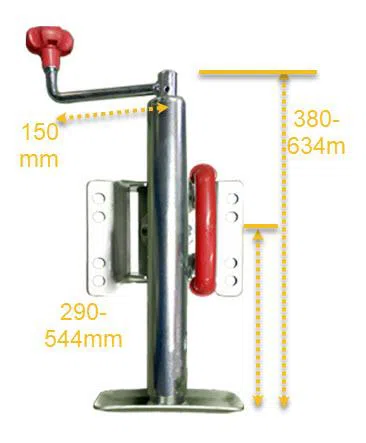

●Mounting bracket height
oRetracted 290mm
oExtended 544mm
Body height:
o Retracted 380mm
o Extended: 634mm
●Total lift: 254mm
●Outer tube dia.: Φ50.80mm
●Inner tube dia.: Φ43mm
●Travel: 254mm
●Handle radius: 150mm
●Lift capacity: 750kg
●Wheel dimension: 180*100mm(7x4" plain foot)
