Description

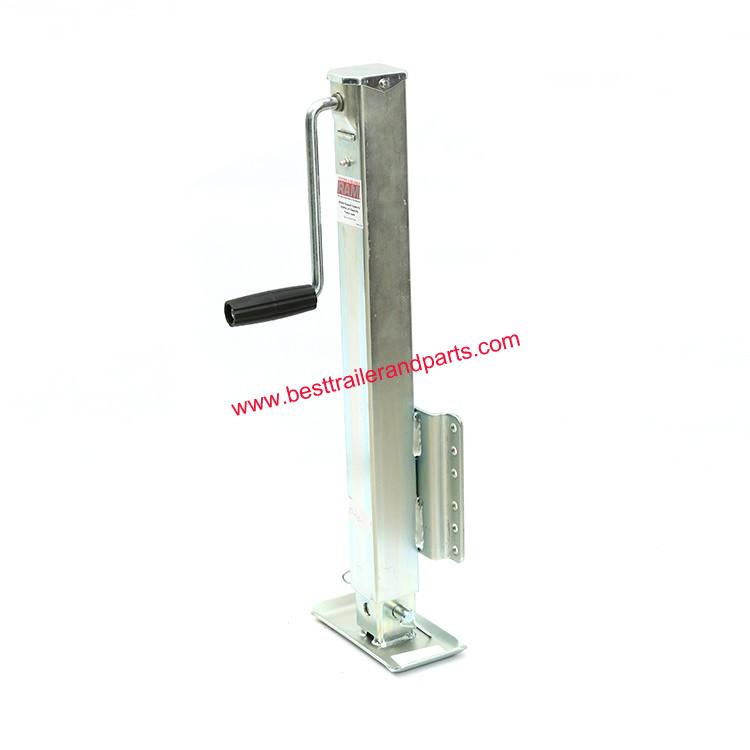

Square Jack W/ Footplate - Drop Leg - Bolt On - Zinc - Side Wind – 28.50" Lift – 2500lbs.
Rust-resistant jack is designed for marine use. Square design offers superior side-load support. This jack features a retracted bracket height of 7-1/4". Extended height is 22-5/8". Screw travel is 15". Drop leg offers an extra 13-3/4" of lift. Mounting Hardware included for easy operation.96hours of salt spray test for good rust resistance.
Features:
●Ideal for use with boat, and other small trailers
●Footplate minimizes sinking in soft ground
●Side wind handle has comfortable, grooved grip
●Corrosion-resistant clear zinc finish for durability
●Comes with mounting hardware that fits up to 3" x 5" trailer frames
●Bolt-on installation to the side of your trailer
Specs:
●Bracket height
o7-1/4" Retracted
o22-5/8" Extended
●Total lift: 28.50"
oScrew travel: 150"
oDrop leg travel: 13.50"
●Lift capacity: 2,500 lbs
●Outer tube width: 2-1/4"
●Inner tube width: 2"
●Footplate dimensions: 7-1/2" long x 3-3/4" wide
●Mounting bracket dimensions: 6-1/2" long x 6-1/2" wide
●Handle radius: 7.50"
●1-Year warranty
