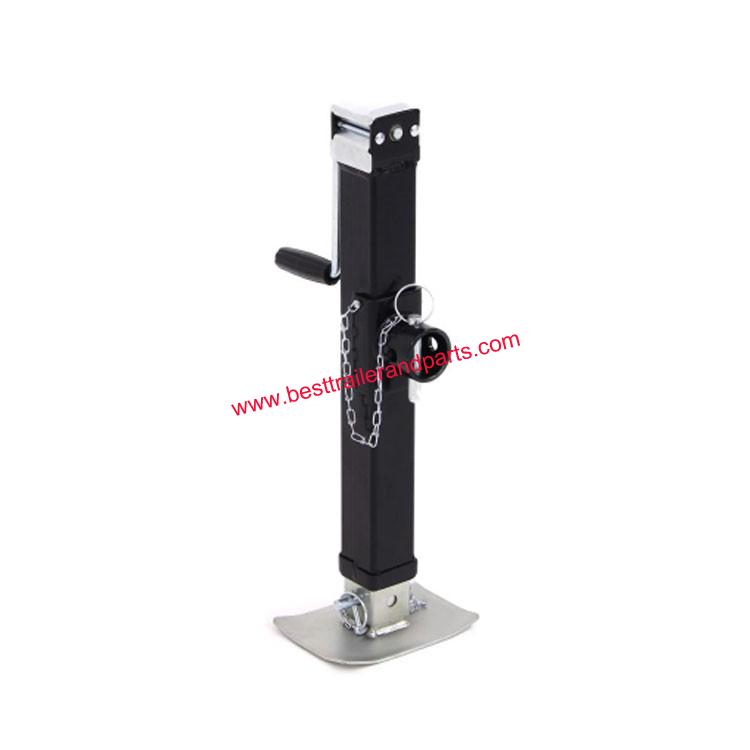

Square Pipe Mount Swivel Jack - Drop Leg - Weld On - Side Wind – 28.50" Lift – 7000lbs.
Designed to be Weld-on, pipe-mount swivel jack for easy use, Square design provides more side-load support. Features a retracted bracket height of 14-1/2". Extended height is 29-1/2". Overall height range between 25.50”and 40.50”. screw travel is 15” and Drop leg offers 13-1/2"/
Features:
●Tubular swivel design lets you twist jack up for storage, down for use
●Square jack provides more side-load capacity than round-tube jacks
●Belly band welded to the outer tube provides extra strength
●Side wind handle has zinc finish for attractive look and rust resistance
●Drop leg allows for increased lift and saves time when raising or lowering
●Black painted outer tube
●Zinc finished inner tube and footplate for corrosion resistance
●Welded-on footplate minimizes sinking in soft ground
Specs:
●Jack height (from bottom of foot to center of pipe mount):
o14-1/2" Retracted
o29-1/2" Extended
●Total lift: 28-1/2"
oScrew travel: 15"
oDrop leg travel: 13-1/2"
●Lift capacity: 7,000 lbs
●Support capacity: 8,000 lbs
●Outer tube width: 2-1/2"
●Inner tube width: 2-1/4"
●Footplate dimensions: 7-7/8" long x 5-7/8" wide
●Handle radius: 8"
●1-Year warranty
