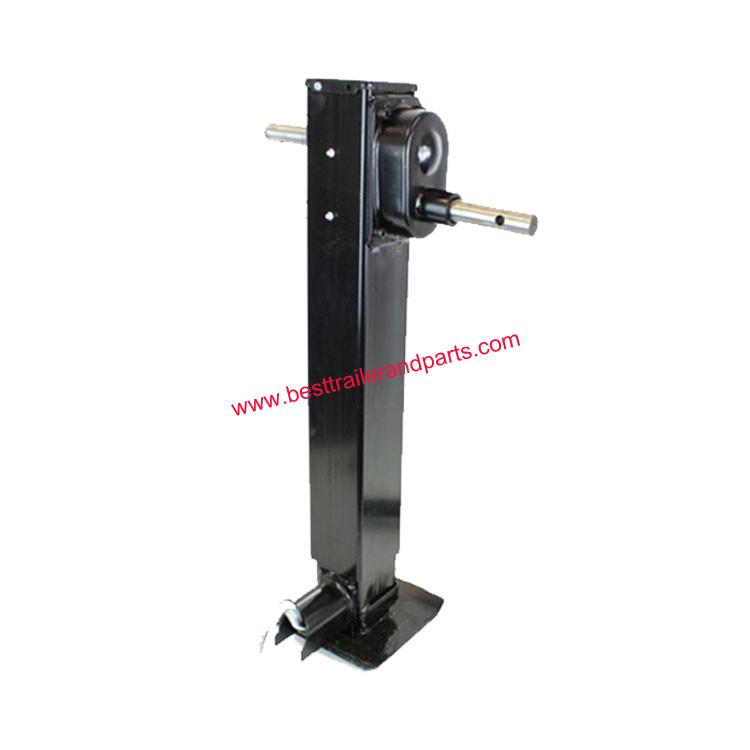

Square 2-Speed Jack W/ Crank - Drop Leg W/ Spring Return - Sidewind - 25-7/8" Lift - 10K
Pull the front-facing plunger pin on this heavy-duty jack to release the drop leg for an extra 13-1/2" of lift. The durable jack screw offers increased strength. Get maximum lifting power in low gear and fast cranking in high gear.
Features:
●2-Speed jack lets you raise and lower your trailer
oLow gear offers full lifting power
oHigh gear provides ultimate speed
●Ideal for agricultural and commercial applications
●Drop leg with spring return increases overall extension for maximum adjustability
oPlunger pin positioned to the front
●Durable 1-1/4" jack screw allows for heavy lifting
●Twin thrust bearings make extending and retracting jack easy
●Effortless greasing with built-in grease zerk
●Black painted inner and outer tubes
●Sidewind handle has curved edges - no sharp ends
oHandle can be secured for travel with included weld-on clip
●Footplate minimizes sinking in soft ground
●Weld-on installation
Specs:
●Height:
o28" Retracted
o40-1/4" Extended
●Total lift: 25-7/8"
oScrew travel: 12-3/8"
oDrop leg travel: 13-1/2"
●Lift capacity: 10,000 lbs
●Support capacity: 12,000 lbs
●Outer tube width: 4"
●Inner tube width: 3-1/2"
●Footplate dimensions: 8-1/4" long x 8" wide
●Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
