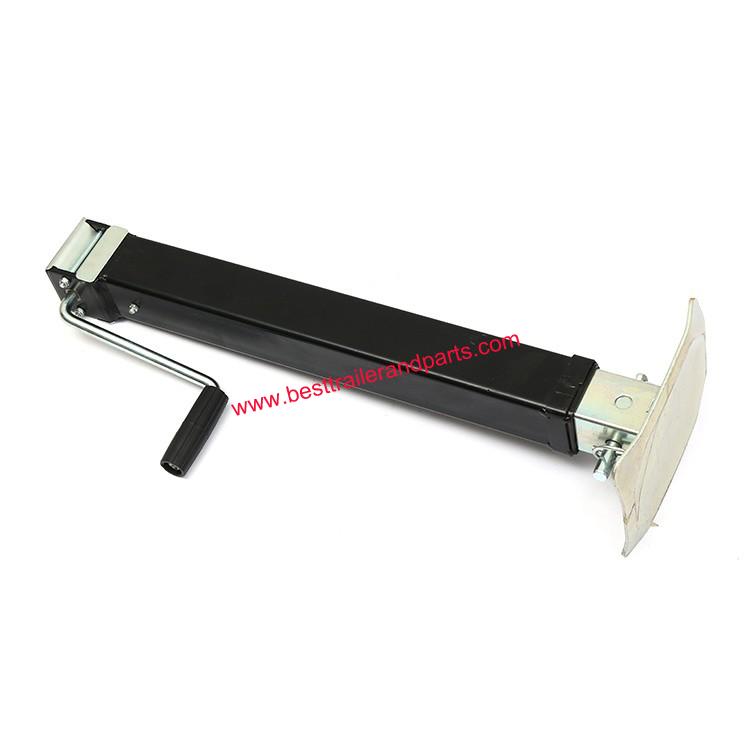

7000lbs Sidwind Square Drop Leg 15” Travel Direct Weld Jack
7, 000lbs square jack provide greater loading capacity than round ones..Have a retracted height of 24.75" and extended height of 53.25". Square tube designing provides superior side-load support. The drop leg offers 13.50" ,total 28.50”Lift. Sidewind handle included.
Features:
●Square jack provides more capacity than round-tube jacks
●Clear zinc for handle, more beautiful appearance, also good for rust resistance
●Drop leg reduces operating time and can reach desired height in the shortest time
●Pin and clip holds leg at desired location (in different hole)
●Built-in grease fittings included
●Black painted outer tube and zinc inner tube.
●Foot dimension is reasonable, not easy to sink into the sand
●Directly-welding installation
Specs:
●Body Height
o24.75” Retracted
o53.25” Extended
●Total lift: 28.50”
oScrew travel: 15"
oDrop leg travel: 13.50"
●Lift capacity: 7,000 lbs
●Static capacity: 8,000 lbs
●Outer tube dimension: 2-1/2"*2-1/2”
●Inner tube dimension: 2-1/4"
●Foot size: 7-7/8" long x 6" wide
●Handle radius: 7-3/4"
●Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
