Description

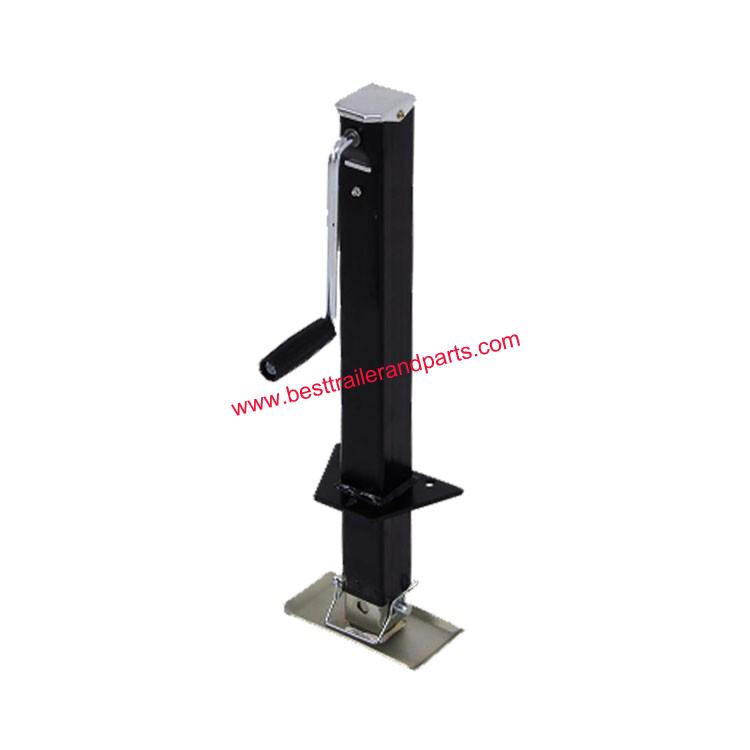

Square A-Frame Jack - Drop Leg - Sidewind - 28" Travel- 5,000 Lbs
This is a square jack with A-Frame mounting bracket with 3 holes that can be welded or bolted to the trailer chassis. This jack has a retracted mounting height of 7-1/8" and an extended height of 22-1/8". The drop leg offers extra 13" travel. Total 28” adjustment as required.
Features:
●The lifting or lowering of the jack can be finished by shaking the handle.
●Galvanized handle has good rust resistance. Black knob provides more comfort.
●Drop leg save time when raising or lowering
●Pin and clip in inner tube holds leg at desired location
●The internal gearbox provides more stable functions.
●Black power coated outer tube and galvanized inner tube.
●Reasonable foot dimensions provided not easy to sink in soft ground
●Bolt-on installation
Specs:
●Bracket height (from bottom of footplate to bottom of bracket):
o7-1/8" Retracted
o22-1/8" Extended
●Total Travel: 28.50"
oScrew travel: 15"
oDrop leg travel: 13.50"
●Lift capacity: 3,000 lbs
●Static capacity: 5,000 lbs
●Outer tube width: 2.25"
●Inner tube width: 2"
●Footplate dimensions: 7.50" long x 4.00" wide
●Handle radius: 7.50"
