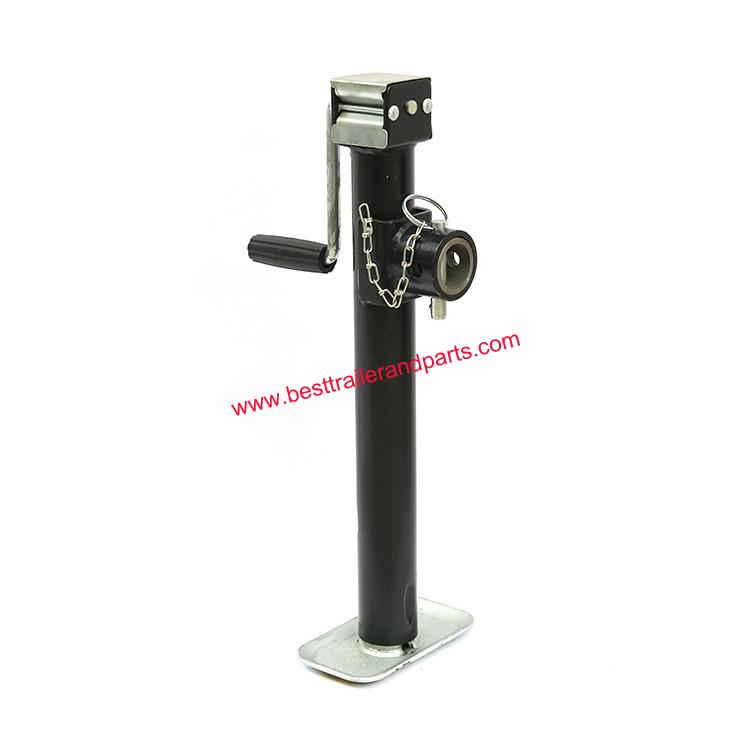

5,000lbs Side-Wind Round Pipe- Mount Swivel Jack - Weld On – 10” Lift Black Powder Coating
5,000 lb. Side wind tubular swivel jack with weld-on pipe mount. Rated 10" travel for suitable use. Durable black powder coating outer tube and with clear zinc finish inner tube. Grease ZERK for easy greasing of jack. Jack comes standard with a welded on 3-3/4" x 7-1/2" durable zinc finish sand foot. Includes a 5/8”locking pin and lanyard assembly as well as a 2" raw male mating pipe.
Features:
●Includes locking pin and chain assembly
●Pipe-mounting designing is very convenient to use
●The chain on the locking pin ensures that the Jack is not lost during operation.
●The surface of the product is galvanized, with good rust resistance
●Designed with oil nozzle, can be done when needed to fill lubricating oil
●Weld-on installation with included 2” raw male welding sleeve.
●1-year warranty
Specs:
●Mounting height
o10.45" (Close)
o20.45" (Extended)
●Travel: 10”
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Foot size: 190*100mm
●Mounting sleeve dia.:
oInner: 2"
oOuter: 2-1/2"
●Handle radius: 8"
●Lift capacity: 3,000 lbs
●Support capacity: 5,000 lbs
