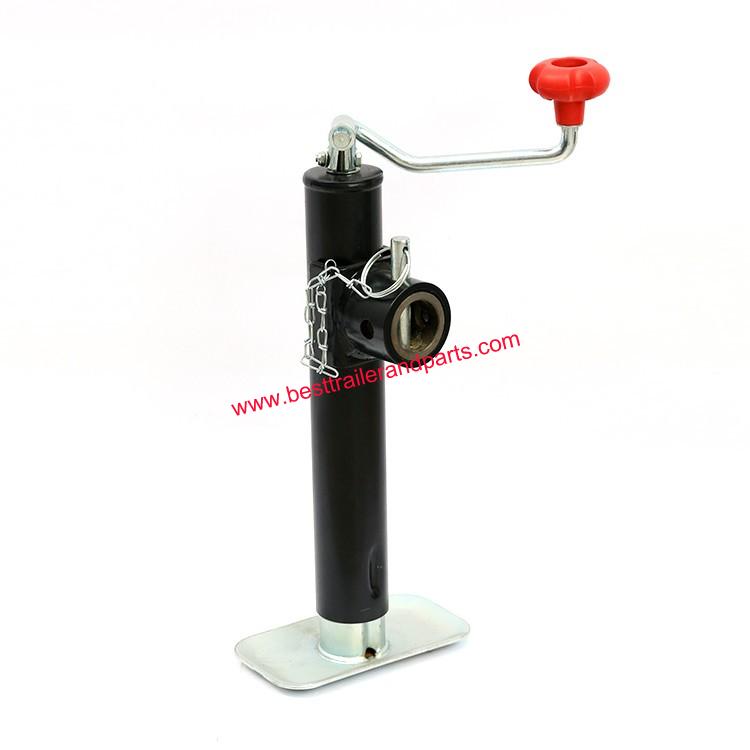

2000lbs Round Topwind 10” Travel Weld-On Pipe Mounting Swivel Jack – Black Powder Coating
This type jack is a Pipe Mount version. mainly designed to use “sleeve+Locking pin” to achieve the purpose of mounting bracket installation. There are two sleeves on the jack, one is welded to the outer tube, and the other is welded directly to the trailer chassis. After the welding is completed, just set two sleeves together with a locking pin.
Features:
●Jack operation is very convenient, stable performance and long service life
●These jacks are used in all kinds of trailers and equipment
●The Pipe mounting bracket is easily to be installed and uninstalled, also can rotate 90 degrees to prevent the jack from touching the ground or other raised objects.
●The handle has a red or black knob, which not only speeds up rotation, keeps the hand from getting hurt in operation.
●Weld-on sleeve included.
Specs:
●Bracket height (from bottom of foot to center of pipe mount):
o10" Retracted
o20" Extended
●Travel: 10"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Foot size: 7-1/2" long x 3-3/4" wide
●Pipe mount dia.:
oInner: 2"
oOuter: 2-1/2"
●Handle radius: 7-3/4"
●Lift capacity: 2,000 lbs
●Support capacity: 2,800 lbs
