Description

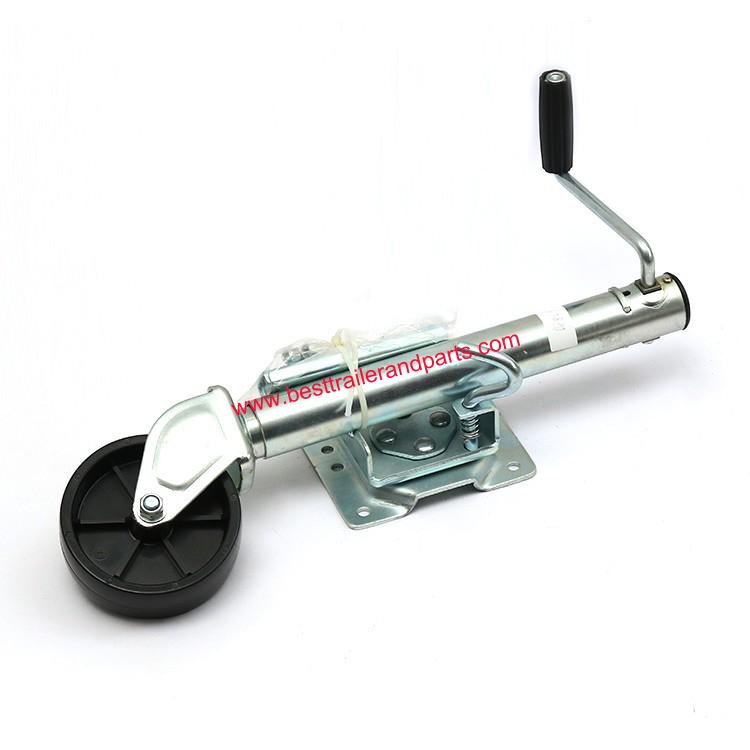

Round Bolt/Weld On Swivel Marine Jack -10" Travel - 1,000 Lbs
This wheel jack is designed to be used in yacht trailer, with better rust resistance. The wheels are designed to be a stable single 6 "plastic wheel. The minimum mounting height is 13.25 "and the maximum is 23.25".The total body height of the Jack is 23.25 "and maximum 33.25" when extended. The load rating is 1000 pounds.
Features:
oWheel jack is mainly used for mobile equipment such as yacht trailer or lighthouse
oSingle 1/2” diameter locking pin provides strong tensile force
o6 "diameter plastic wheel provide strong support and extend service life
oWheels can rotate 360 degrees to accommodate different directions of trailer
oThe clear zinc coating to increase the rust resistance;
oWheel Jacks are shipped with the hardware, for side installation;
Specs:
●The mounting trailer frame distance is limited between 4” and 6”.
●Mounting height (from bottom of wheel to center of bracket):
o13-1/2" Retracted
o23-1/2" Extended
●Travel: 10"
●Outer tube dia.: 2"
●Inner tube dia.: 1-3/4"
●Wheel diameter: 6” diameter x 2" wide
●Handle radius: 7"
●Lift capacity: 1,000 lbs
