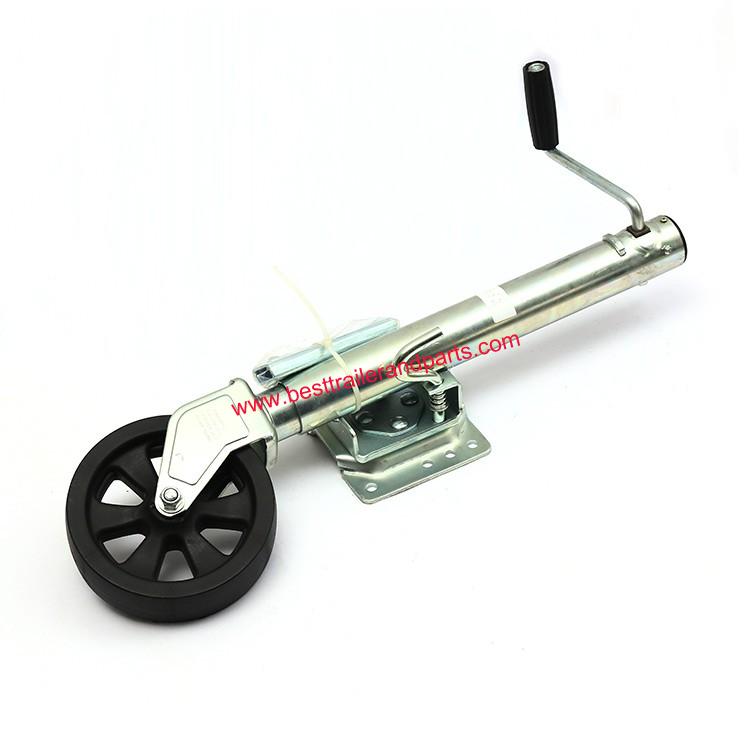

Round Swivel Marine Jack - Bolt On - Zinc - Sidewind - 10" Travel - 1,500 Lbs
The is an updated version of the 1,000lbs wheel jack. Rated at 1,500 LBS., improvements include swivel weld or bolt-on bracket, new designed 4-hotls to fasten with bracket .Redesigned 8”plastic reinforcement wheel for more side-capacity. Good Rust -resistance. The Jack all comes with hardware.
Features:
The wheel jack can move your equipment or trailer to desired location at will
●The mounting plate can be rotated at 90 degrees to prevent the jack from hitting the ground or other parts during movement.
●4-Bolt mounting plate provides extra side load support
●The i1/2 diameter locking pin provides greater supporting capacity
●Inner tube can rotate 360 degrees to accommodate different directions of trailer
●Corrosion-resistant clear zinc finish for durability
●Bolt-on installation to the side of your trailer
Specs:
●Application: trailers with a frame height from 2" to 4"

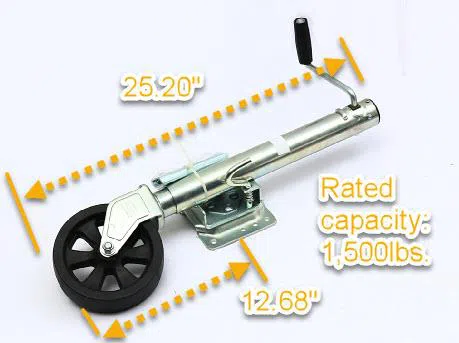

●Bracket height (from bottom of wheel to center of bracket):
o12.68" Retracted
o22.68" Extended
●Travel: 10"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Wheel dimensions: 8" diameter x 2-1/16" wide
●Mounting bracket dimensions: 6-7/8" long x 5-3/4" wide
●Handle radius: 6.50"
●Lift capacity: 1,500 lbs
