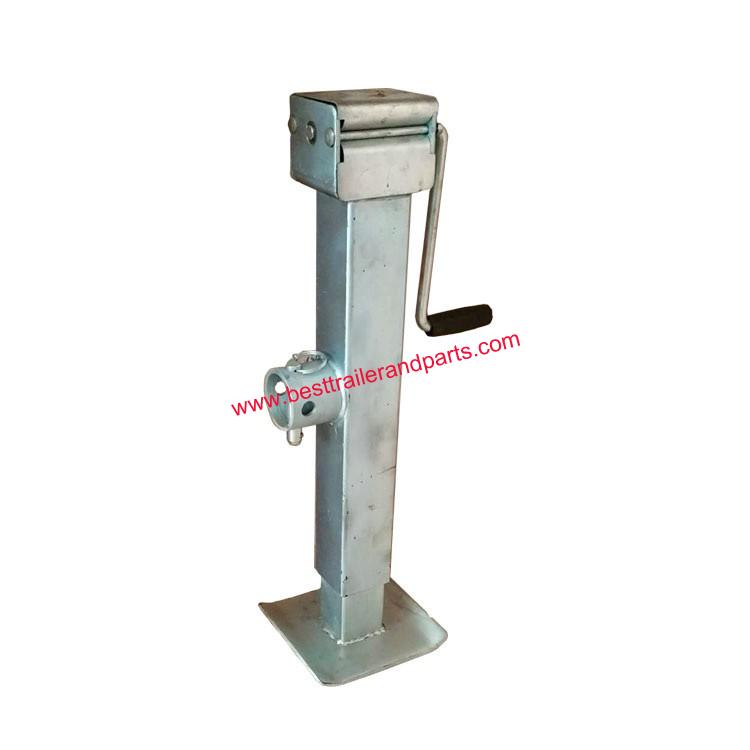

10,000LBS Square Jack - Fixed Leg – Weld- On - Galvanized - Sidewind – 381mm Lift-Mounting Sleeve Include
Parking jack used to lift heavy-duty agricultural and industrial trailers. Just do welding or choose pipe-mounting to lift or lower the trailers to a desired positions. Full zinc provides good rust resistant. Square tube designed offers more side-load supporting lifting force. Mounting height is between 305mm and 686mm.The body height is between 640mm and 1021mm.The total travel is 381mm from screw. Large fixed base provides a steady.
Features:
●Parking jacks with side handle and reduction gears for long use.
●This Jack features a capacity of 4000kg to be suitable for agricultural and industrial trailers.
●Full galvanized both tubes for better resists corrosion
●A welded gearbox provides more capacity.
●Each parking jack features grease fittings for adding more grease.
●Pipe mounting ensure jack could rotate 90 degree when not in use.
●Custom finishes are available upon request.
●Mounting sleeves included.
Specs:
●Bracket height (from bottom of inner tube to center of frame bracket):
o305mm Retracted
o686mm Extended
●Travel: 381mm
●Outer tube dia.: 80*80mm
●Inner tube dia.:70*70mm
●Handle radius: 225mm
●Lift capacity: 10,000 lbs.
●Static capacity: 9,000lbs
