Description

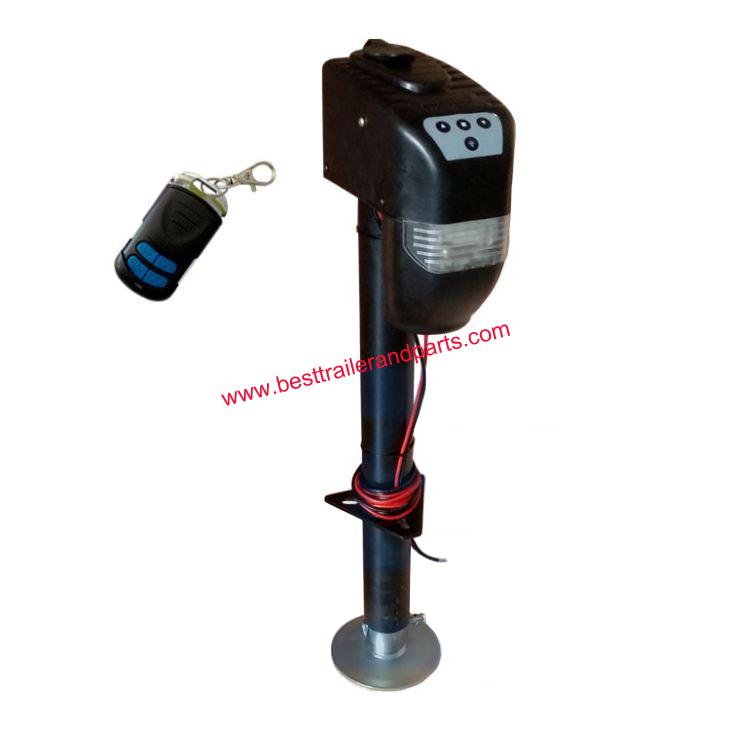

3,500lbs Power Jack With 5-5/8"Drop Leg – A Frame - 19.5" Lift – Round Base-Black Powder Coating
This power Jack designed to get works quicker and save time. Four buttons for easy operation: one is for rising up, one is for risng down. one is for urgent stopping rising up and down. the final one is for light controls. same operation on remote control. there is a new designning of the remote control is: Lock button,which could lock all operation when necessary. Led lights designed to use Jack in dark for long life. Jack has a retracted mounting height of 10.9", an extended body height of 30.40", its screw provide 19-1/2" travel. Drop leg offers an extra 5-5/8" of lift. Includes a manual handle together when no power.
Features:
●Electric jacks can lift or lower your trailer easily and quickly, then save time.
●The purpose of the drop leg is to provide extra height easily in operation, no need to shake the handle to gain necessary height. just use a easy Locking pin.
●Design 4 buttons, 2 bottons for risng up and down,the other two for light controls and urgent stopping.
●LED lights are designed to be used at night to increase brightness and point directly at the installation location.
●Manual handle is mainly designed to replace the motor when no power.
●Black powder coated outer tube & clear zinc inner tube and drop leg;
●Wires (57") to 12-volt power source
●Serrated washer included for ground connection
● A grove inside the inner tube to avoid Jack rotaing easily.
● Pallet or retailed color box for different requirements.
Specs:
●Mounting Bracket Height:
oRetracted: 10.9"
oExtended: 30.40"
●Total lift: 25-1/8"
oScrew travel: 19-1/2"
oDrop leg travel: 5-5/8"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●The distance between the two holes in drop leg: 1-7/8"
●Foot Size: 5-1/2" (Round)
●Lift capacity: 3,500 lbs
●1-Year warranty
| Static capacity (lbs.) | 4,000 | Working operation | Button |
| Lift capacity(lbs.) | 3,500 | Bracket height(inch) | 8 |
| Length of Travel (inch) | 18 | Retracted height(inch) | 30 |
| Crank Type | Top |
