Description

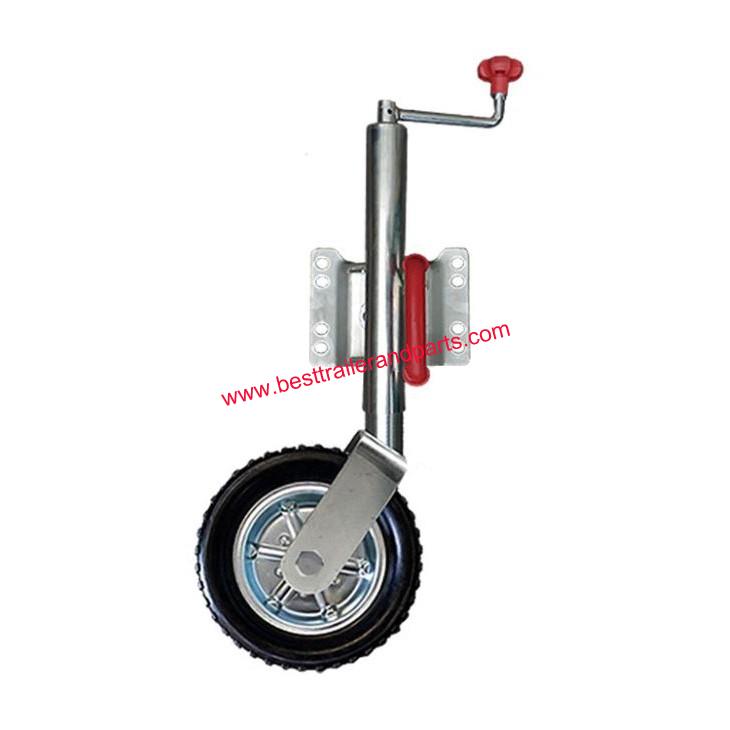

Heavy-Duty Swing-Up Jockey Wheel With Solid 10" Steel Rim Rubber Wheel- Galvanized-750KG
This Australian style jockey wheel provided a capacity of 750kgs. a U-bolt or direct-welding for optional choiced. new designed 4-bolt application to fix bracket instead of a M16 bolt. make sure more steady and long life.254mm travel for better use. when get this jockey wheel, just bolt or weld to the trailer frame. new designed 260MMx 55mm (10"x 4") solid Rubber wheel with Zinc plated steel center. note that U bolt sold separately.
Features:
●Jockey wheel is used to lift or adjust the trailer to suit towing parts.
● Long or shorter Clear zinc handle has good rust resistance and suitable operation.
●The handle is fixed with jockey wheel by a 4-bolt application for safety use and nice look.
●Zinc plated on both outer/ inner tube.
●Swing up bracket and Easy Release Handle for easy operation,rorate bracket when in travel.
●10" Steel Rim Solid Rubber Wheel.
Specs:
●Mounting bracket height
oRetracted 420mm
oExtended 674mm
●Body height:
o Retracted 700mm
o Extended: 954mm
●Total lift: 254mm
●Outer tube dia.: Φ51mm
●Inner tube dia.: Φ43mm
●Travel: 254mm
●Handle radius: 150mm
●Lift capacity: 750kg
●Wheel dimension: 260*102mm (10"x4" rubber wheel)
