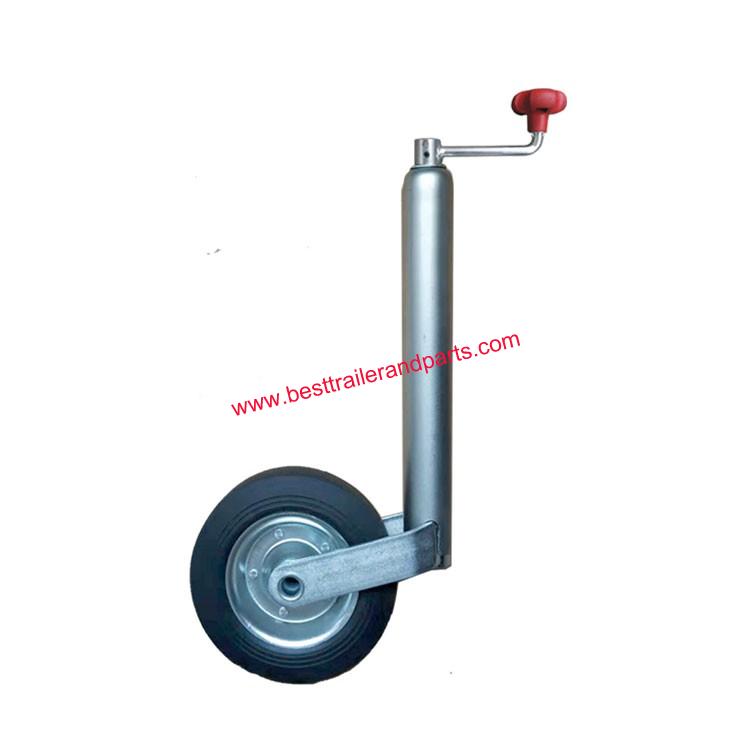

Heavy-Duty Jockey Wheel With Solid 8” Steel Rim Rubber Wheel- Galvanized
Jockey wheel made from solid Galvanized steel: Φ48mm tube and Φ42mm inner tube. Crank handle with a red knob for suitable operation. Solid Steel wheel rim features a 200mm x 50mm solid rubber Wheel. Owns a Static load capacity of 150kg. 250mm travel designed to be adjusted fro different towing height. Galvanized for good rust protection. Clamp sold separately.
Features:
●Jockey wheel is used to lift or adjust the trailer to suit towing parts.
●Clear zinc handle has good rust resistance and suitable operation.
●The handle is fixed with jockey wheel by a Spring-pin for safety use.
●Galvanized on both outer/ inner tube.
●High quality screw provides strong supporting capacity and durability.
●200x50mm solid steel rim rubber wheel provides a light and quiet operation.
●Super Clamp bracket offers more different height compared with welding bracket.
Specs:
●Mounting bracket height
oClamp Bracket (Adjusted height)
Body height:
● Retracted height 630mm
● Extended height: 880mm
●Total lift: 250mm
●Outer tube dia.: Φ48mm
●Inner tube dia.: Φ42mm
●Travel: 250mm
●Handle radius: 150mm
●Lift capacity: 150kg
●Wheel dimension: 200*50mm solid rubber wheel with steel rim
