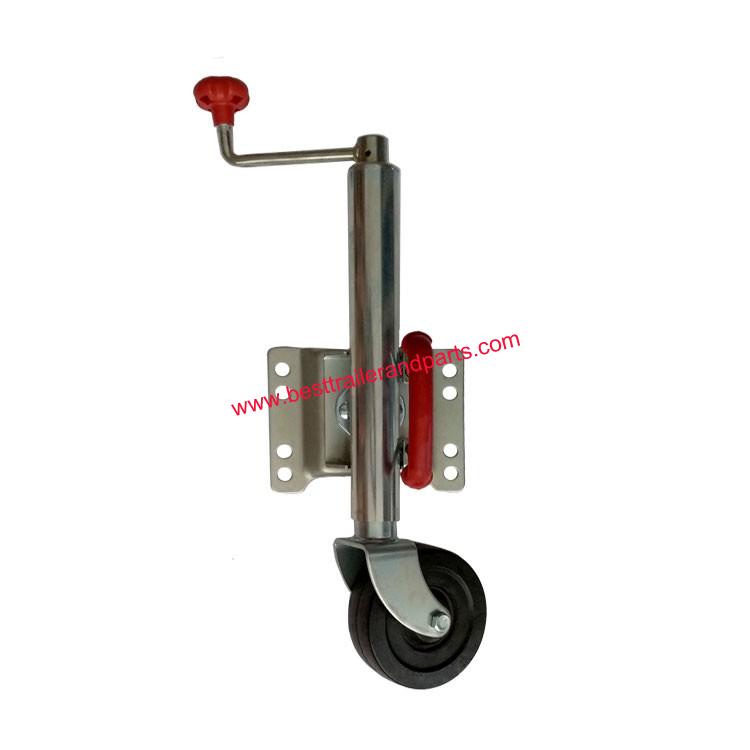

A Jockey wheel a retractable adjustable-height wheel used on the front of trailers. The jockey wheel is situated close to the towing hitch and has a built-in screw jack to enable the trailer nose to be lifted over the tow ball of a car or other powered vehicle. The screw jack can then be used to gently lower the trailer nose onto the tow ball. Jockey wheel made from solid Galvanized steel: Φ51mm tube and Φ44mm inner tube. Crank handle with a red knob for suitable operation. Solid Steel wheel rim features a 152 x 50mm rubber tyre. Features a Static load capacity of 350kg. 250mm travel designed to be adjusted for different towing height. Galvanized for good rust protection. U-bolt not included.
Features:
●Jockey wheel is used to lift or adjust the trailer to suit towing parts.
●Clear zinc handle has good rust resistance and suitable operation.
●The handle is fixed with jockey wheel by a Spring-pin for safety use and nice Look.
●Galvanized on both outer/ inner tube.
●High quality screw provides strong supporting capacity and durability.
●152*50mm (6"*2") rubber wheel provides a light and quiet operation, long life.
Specs:
●Mounting bracket height (Measured from center of bracket to the bottom wheel):
oRetracted 290mm
oExtended 540mm
●Body height(Measured from top of handle to the bottom wheel):
o Retracted 540mm
o Extended: 790mm
●Total lift: 250mm
●Outer tube dia.: Φ50.80mm
●Inner tube dia.: Φ44mm
●Travel: 250mm
●Handle radius: 150mm
●Lift capacity: 350kg
●Wheel dimension: 152*50mm (6"x2")
