Description

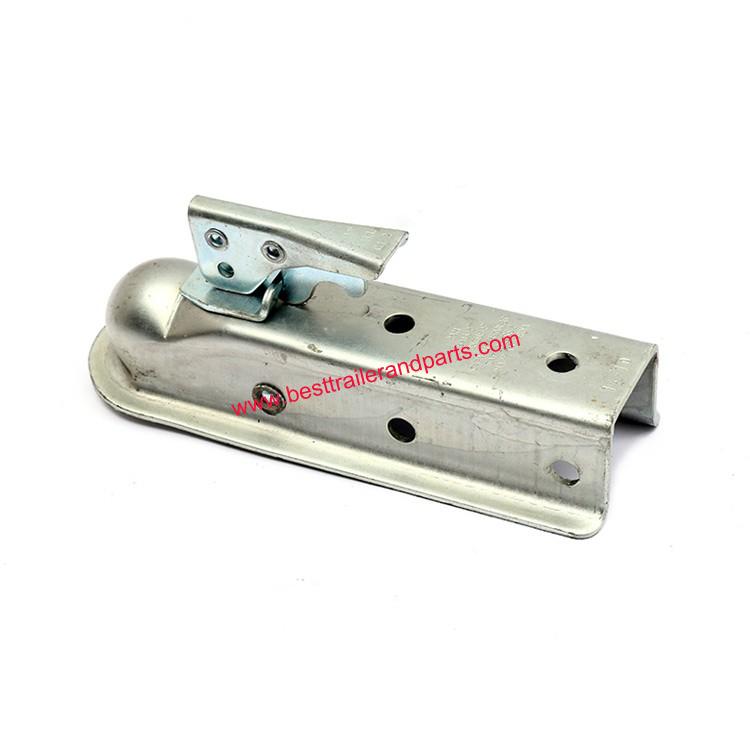

Straight Tongue Stamping Trailer Coupler - Trigger Latch –2" Ball - Bolt On - 3,500 Lbs
This coupler fits 2” ball is primarily used to mount the 2 “width of square tube. The main parts are finished by stamping. Spring-returned handle to pull up or down to complete the hitch ball catching and release operation. The surface is galvanized with good rust resistance. All couplers are 100% inspected before delivery.
Features:
●Channel Coupler can be used with a jack to raise, lower or move the trailer to proper position
●Provides connection point for hitch ball
●Trigger latch allows for safe and easy coupling and uncoupling
●Pull trigger and pull up on latch to open ball socket
●Sturdy steel construction
●Durable zinc finish provides superior corrosion resistance
●SAE J684 certified
●Bolt-on installation
●Hardware not included
Specs:
●Ball size: 2"
●Channel width: 2"
●Overall dimensions: 10-3/4" long x 3-1/2" wide
●Pin hole diameter: 5/16 "
oMinimum span needed for pin or pin lock: 5/8"
●Distance between mounting holes (center to center): 3-1/16"
●Weight capacity: 3,500 lbs
