Description

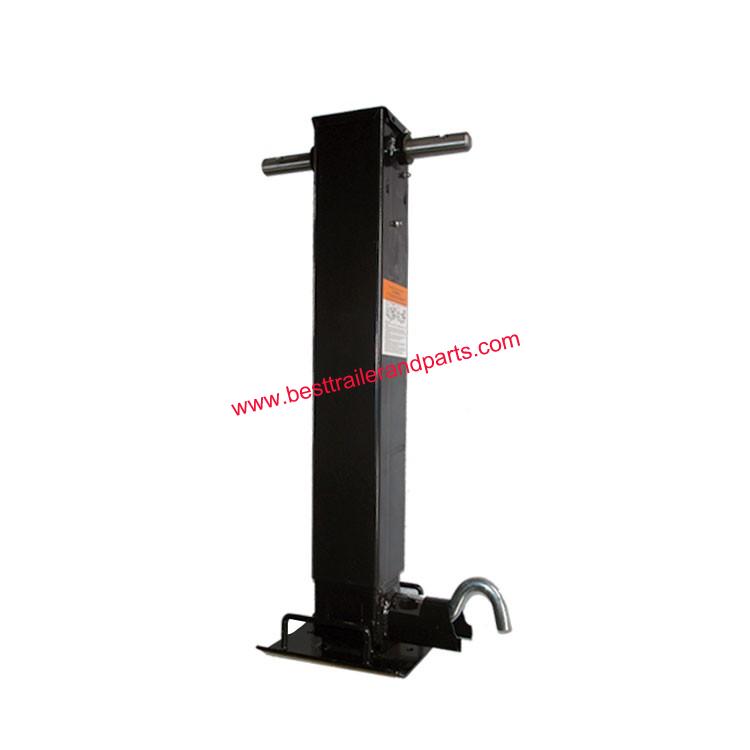

12000lbs Square Sidewind 12.5” Travel Drop Leg Jack W/ Spring Return (Include Crank Handle)
This jack is designed to lift heavy trailers or equipments. Included three parts: outer tube, middle tube and inner tube (all are square tubes).spring return inner tube features a very easy operation. Plunger pin to front. The Jack is used to weld directly to the trailer chassis and can be welded at a self-determined height. The total body height of the Jack is between 28 "and 53.25". drop leg provide additional 13” extension. 2 Built-in grease for simple greasing. Crank handle included.
Features:
●Although the jack is heavier by itself, it takes less effort to lift when working
●Drop leg allows you to easily adjust your height faster to meet different requirements
●Plunger pin positioned to the front
●1" jack screw allows for heavy lifting
●The product is also equipped with 2 oil nozzles
●Black powder coating for inner and outer tubes
●Handle can be secured for travel with included weld-on handle clip
●Foot dimension is reasonable, not easy to sink into the sand
●Weld-on installation.
Specs:
●Mounting Height:
o28" Retracted
o53.25" Extended
●Total Travel: 25.50"
oScrew travel: 12.50"
oDrop leg travel: 13"
●Lift capacity: 10,000 lbs
●Static capacity: 12,000 lbs
●Outer tube width: 4"
●Inner tube width: 3-1/2"
●Footplate dimensions: 8-1/4" long x 8" wide
●Adjustment hole spacing on drop leg: 3-3/8" from center of hole to center of hole
