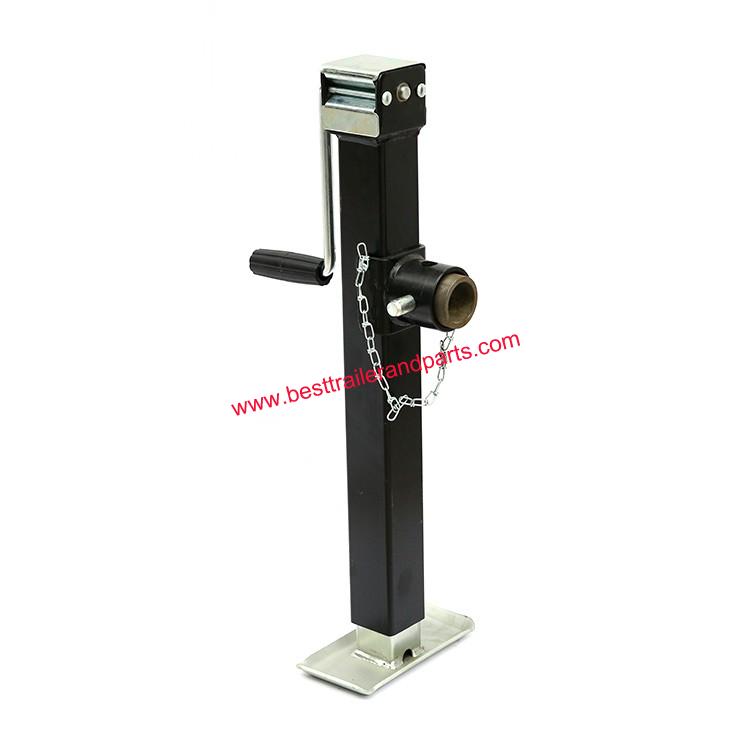

Square Pipe Mount Swivel Jack With Footplate - Weld On - Sidewind - 15" Travel - 5,000 Lbs
This fixed-leg, swivel jack pivots up for travel and down for use. Square design provides superior side-load support. Jack has a retracted Bracket height of 15.90" and an extended height of 30.90". overall height range between 25" and 40". Mounting small sleeves included.
Features:
●Utility jack lets you raise and lower your trailer
●Tubular swivel design lets you twist jack up for storage, down for use
●Square jack provides more side-load capacity than round-tube jacks
●Side-wind handle has zinc finish for attractive look and rust resistance
●Black painted outer tube, Zinc finished inner tube
●Weld-on installation
Specs:
●Bracket height(installation height)
o15.90" Closed
o30.9" Extended
●Travel: 15"
●Outer tube width: 2.25" Sq.
●Inner tube width: 2" Sq.
●Footplate dimensions: 7.5" long x 4" wide
●Pipe mount diameter:
oInner: Φ2"
oOuter: Φ2-1/2"
●Pipe mount pin hole diameter: Φ5/8"
●Handle radius: 7.50"
●Lift capacity: 3,000 lbs.
●Support capacity: 5,000 lbs.
●1-Year warranty
