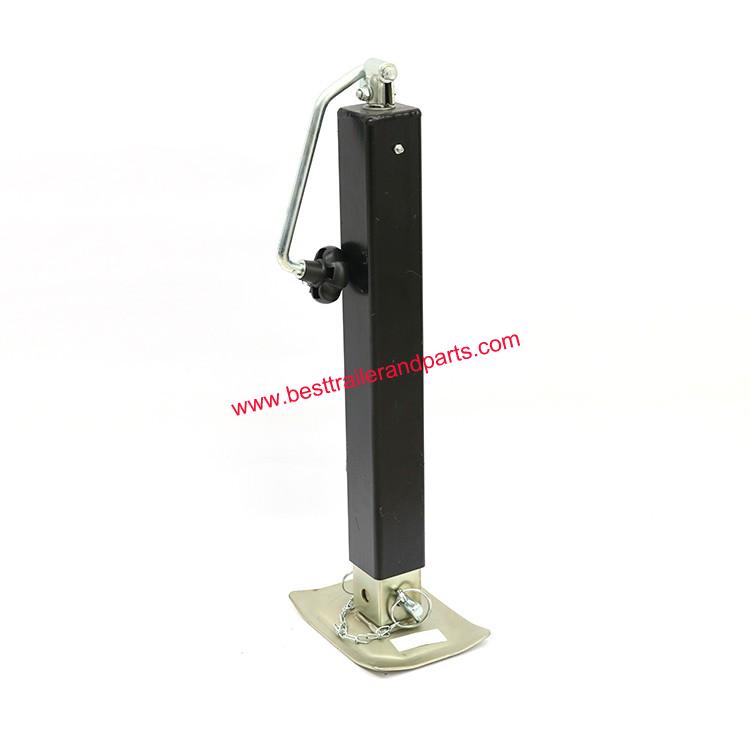

Square Pipe Mount Jack With Drop Leg - Weld On - Topwind - 15" Travel - 7,000 Lbs. (Drop Leg Provides 13” Travel)
Top wind Square Tube Jack has rated 7,000 lbs. lift capacity and 8,000 lbs. static capacity. Jack features a 2.5 inch outer tube and 2” inner tube. 6” x 8” large foot pad and solid-bar crank handle with red or black claw knob, provides a nice look and great performance.
Features:
●Jack used to raise and lower your trailers.
●Directly welded onto the trailer classics and will not take it down when use.
●Square jack provides more side-load capacity than round-tube jacks
●Side-wind handle has zinc finish for attractive look and rust resistance
●Black painted outer tube, Zinc finished inner tube and crank handle kits.
●Weld-on installation
Specs:
●Overall body height:
o24.50" Closed
o39.50" Extended
●Travel: 15"
●Outer tube width: 2.5" Sq.
●Inner tube width: 2" Sq.
●Footplate dimensions: 6.00" long x 7.90" wide
●Handle radius: 7.50"
Total lift: 28.50”
●Screw travel: 15"
●Drop leg travel: 13.50"
●Lift capacity: 7,000 lbs.
●Support capacity: 8,000 lbs.
●1-Year warranty
