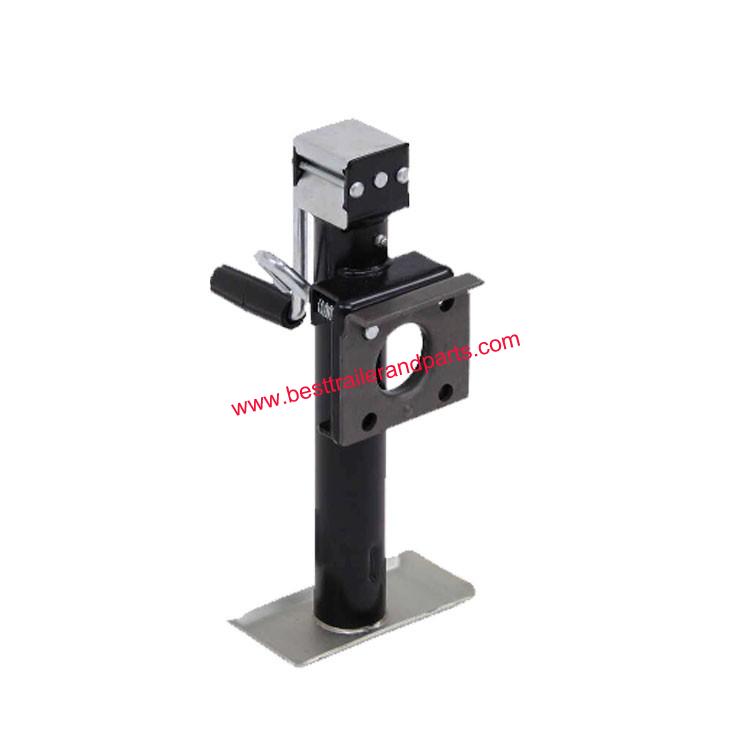

2000lbs Round Sidewind 10” Travel Weld-On Snap Ring Swivel Jack – Black Powder Coating
This type jack is mainly used in agricultural equipment or trailers; the highlight of the design is that the mounting bracket can rotate 90 degree and held in place by welding-on. The mounting bracket has flanged and can only be connected to square pipes. Mounting bracket heights range from 10.5 "to 20.5".The body height of the jack is between 16.95 "and 26.95". Total 10” Travel for use.
Features:
●High quality steel material provides higher performance
●Spring-loaded locking pin is very convenient to operate, pulling up and down to complete the operation process.
●Our spring –loaded locking pin is 1/2 " diameter, which is larger than other manufacturers
●Our mounting bracket is reinforced in order to provide more strength
●Black powder coating of Outer tube, zinc of inner tube, foot and handle kits
●Foot size is reasonable, which is not easy to sink in the sand
●There are corrosion resistant nozzles on the outer tube, which can be filled with lubricating oil as required
●Weld-on mounting bracket included
Specs:
●Mounting height (from bottom of foot to center of mounting plate):
o10.50" Retracted
o20.50" Extended
●Travel: 10"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Footplate dimensions: 7-1/2" long x 3-3/4" wide
●Mounting bracket dimensions: 5" x 4-1/4"
●Handle radius: 6-1/2"
●Lift capacity: 2,000 lbs
