Description

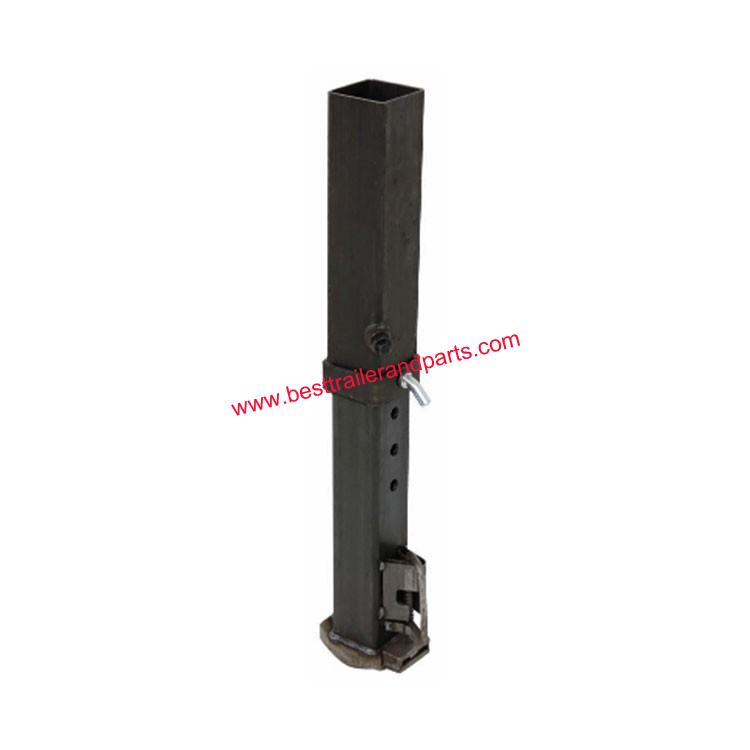

Gooseneck Coupler Include Load Bearing Pin - 8" Adjustment - Square - 2-5/16" Ball – 25,000lbs
Gooseneck coupler is designed with a 2-5/16" hitch ball and 8" of adjustment. The casting ball clamp creates a strong and tight fit for the hitch ball. Hidden spring latch is durable and easy to use. User-friendly designing ensures quick to hook up and vertical adjustment. Oily coating for recoating as required. welded outer tube to trailer classics when use.
Features:
●Gooseneck coupler used to hook your gooseneck trailer up to your vehicle.
●Hitch ball size: 2-5/16”.
●Casting ball clamp ensures hitch ball in ball sockets safety.
●Spring-loaded handle for easy opening and close.
●2 Set screws secure inner tube at required height
●Load bearing pin included.
●SAE J2638 certified.
●Weld-on installation.
●Weld outer tube to your trailer chassis when use.
Specs:
●Hitch Ball size: 2-5/16"
●Vertical adjustment: 8"
●Height:
o Retracted: 30"
o Extended: 38"
●Outer tube dia.: 4-1/2"
●Inner tube dia.: 4"
o Inner tube wall thickness: 0.24"
●Hole spacing: 2.68"
o Hole diameter: 0.875"
●Weight capacity: 25,000 lbs
