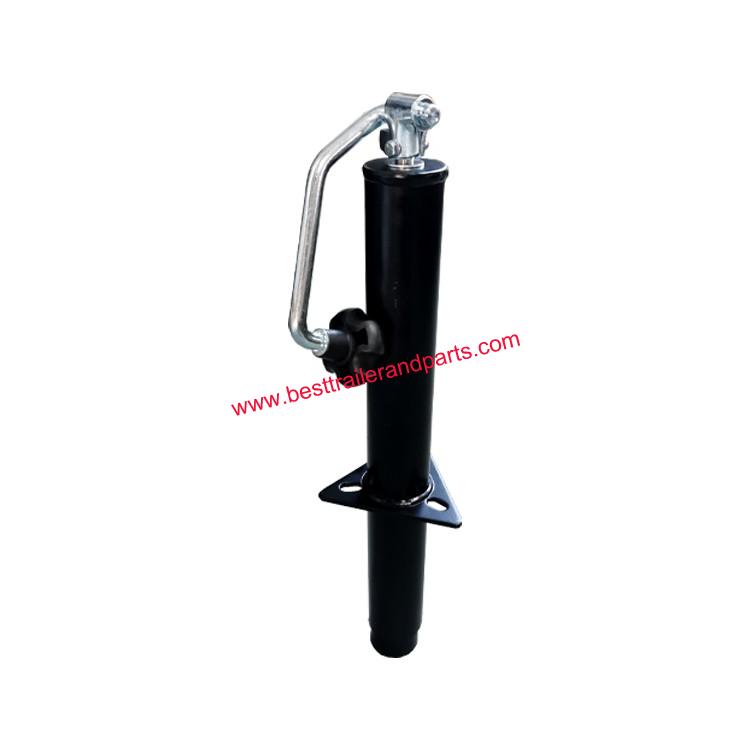

Round A-Frame Trailer Jack - Topwind - 15" Travel - 5,000 Lbs
Black powder coated for this jack, with good rust resistance. Mounting height is between 8 "and 24".The body height is between 20 "and 35".The total screw travel is 15”. Used together with a A frame coupler during operation.
Features:
●This jack used together with a frame coupler, caster wheel or foot.
●Strengthened Topwind handle has a god galvanized finish for good rust resistance
●Handle fixed with Jack itself by a bolt-head and nuts.
●Black powder coating for better resists corrosion
●Foot or caster wheel sold separately
Specs:
●Bracket height (from bottom of inner tube to center of frame bracket):
o 8" Retracted
o 23" Extended
●Travel: 15"
●Outer tube dia.: 2.25"
●Inner tube dia.: 2"
●Handle radius: 6.75"
●Lift capacity: 3,000 lbs
●Static capacity: 5,000lbs
●1-Year warranty
