Description

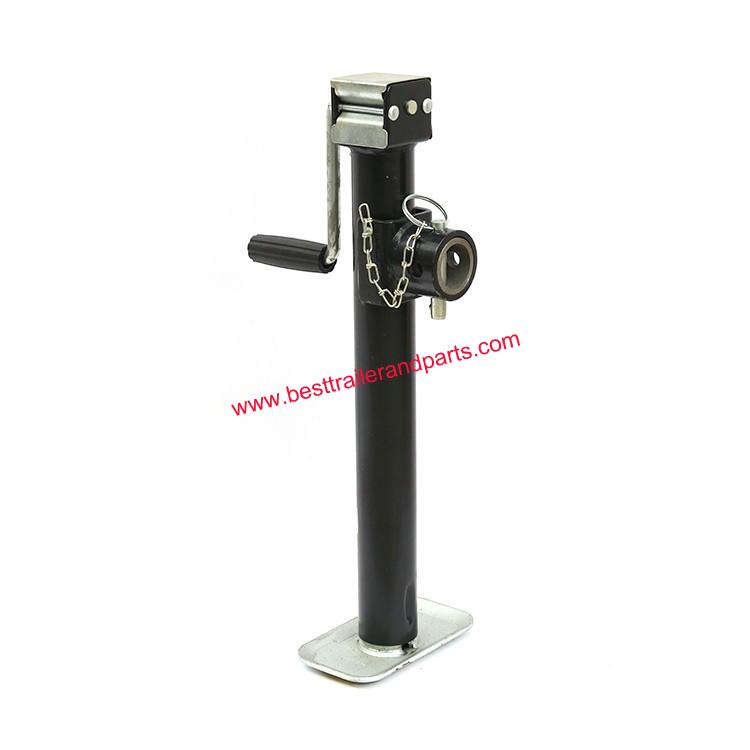

2000lbs Sidewind Round Pipe- Mount Swivel Jack - Weld On – 15” Lift*Black Powder Coating
This jack is mainly designed to support the trailer and other equipment. Firstly, one steel mounting sleeve will be welded to the trailer, and then the jack and the mounting sleeve are fixed with locking pin, which is very convenient to use. The mounting height is between 15.25 "and 30.25", and the overall Jack height is between 22.45” and 37.45 ".15” travel for more use. The welded sleeve is shipped with the jack.
Features:
●The jack is mainly used to adjust the height of the trailer to meet different requirements
●Pipe-mounting designing is very convenient to use
●The chain on the locking pin ensures that the Jack is not lost
●The surface of the product is galvanized, with good rust resistance
●Designed with oil nozzle, can be done when needed to fill lubricating oil
●Weld-on installation with included welding sleeve.
Specs:
●Mounting height
o15.25" (Minimum)
o30.25" (Maximum)
●Travel: 15”
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Foot size: 190*100mm
●Mounting sleeve dia.:
oInner: 2"
oOuter: 2-1/2"
●Handle radius: 6.0"
●Lift capacity: 2,000 lbs
●Support capacity: 2,800 lbs
