Description

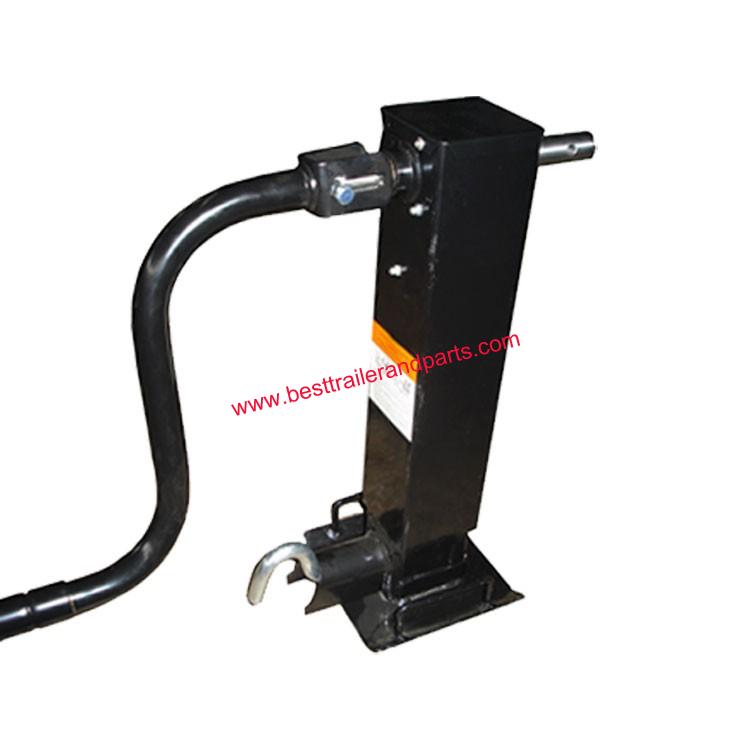

12000lbs Square Sidewind 12.5” Travel Drop Leg Jack W/ Spring Return (Include Crank Handle)
This jack is mainly used to lift heavy trailers or equipments. This jack is divided into three parts: outer tube, middle tube and inner tube. Also Screw rod, upper& bottom gears and other parts have been specially strengthened in order to reach requirements of rated loading of12, 000 LBS. the inner tube welded a soldered square Foot and a locking pin that can be operated by foot. At the same time, the inner tube can rebound itself without manual operation. Equipped with a removable crank handle, which can be used to operate multiple jacks. Also include 2 oil nozzles.
Features:
●Although the jack is heavier by itself, it takes less effort to lift when working
●Drop leg allows you to easily adjust your height faster to meet different requirements
●Plunger pin positioned to the side
●1" jack screw allows for heavy lifting
●The product is also equipped with 2 oil nozzles
●Black powder coating for inner and outer tubes
●Handle can be secured for travel with included weld-on handle clip
●Foot dimension is reasonable, not easy to sink into the sand
●Weld-on installation.
Specs:
●Body Height:
o28" Retracted
o53.50" Extended
●Total lift: 25.50"
oScrew travel: 12.50"
oDrop leg travel: 13"
●Lift capacity: 10,000 lbs
●Static capacity: 12,000 lbs
●Drive pin diameter: 1"
●Outer tube width: 4"
●Inner tube width: 3-1/2"
●Foot dimensions: 8-1/4" long x 8" wide
●Adjustment hole spacing: 3-3/8" from center of hole to center of hole
