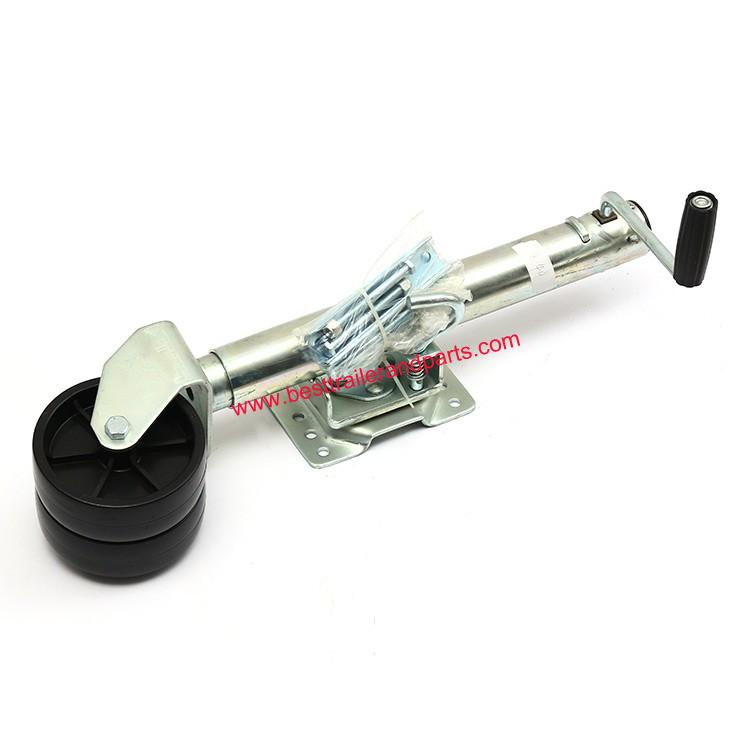

1,500lbs Round Dual 6*2 Wheel -10"Travel-Sidewind Handle-Swivel Marine Jack
The designing highlight of this marine jack is two 6" plastic wheels to increase the loading capacity and extend the using life. The wheels are high quality plastic wheels. using two wheels together will increase the smoothness and wear resistance when turning. When not in use, the jack can be rotated by 90 degrees to keep the jack parallel to the trailer chassis, so as to prevent the jack from touching the ground or other raised objects. This jack all will be equipped with hardware.
Features:
Wheel jack is primarily designed to move trailers or equipment over short distances, such as from warehouse or by near sea.etc.
●New designed of four bolts to hold the mounting plate to increase load bearing capacity
●A 1/2 "diameter spring-loaded pin provides greater loading capacity and stability
●The inner tube with wheels can rotate 360 degrees, allowing the trailer to travel in different directions
●The sidewind handle is plastic-coated, more comfortable and durable.
●The clear zinc surface provides high quality anti - rust treatment
●Mounting bracket and hardware included
Specs:
●The size of mounting frame is limited between 4 "and 6"
●Mounting height (measured from center of bracket to bottom wheel)
o12.59” Retracted
o22.59" Extended
●Mounting height (measured from top of Jack to bottom wheel)
o 25.20” Retracted
o 35.20" Extended
●Travel: 10"
●Outer tube dia.: 2-1/4"
●Inner tube dia.: 2"
●Dual-wheel dimension: 5-3/4" diameter x 4" wide
●Handle radius: 6.0"
●Lift capacity: 1,500 lbs
